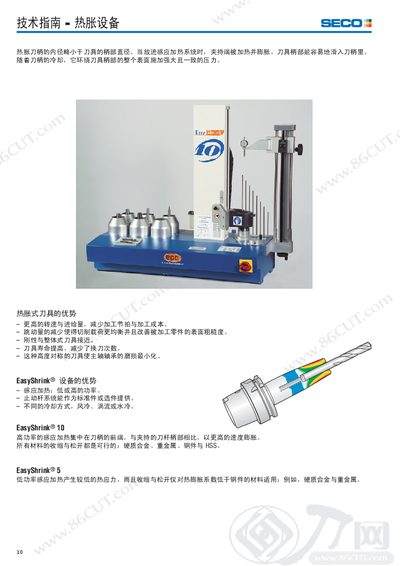

This document provides a technical guide for thermal expansion equipment, including the characteristics and advantages of thermal expansion tool holders, as well as the specific specifications and application range of EasyShrink® 10 and EasyShrink® 5 devices.
This service manual describes the EasyShrink heating system, covering both the high‑power EasyShrink 10 and the low‑power EasyShrink 5 variants. It explains the heating principle, tool‑holder cooling methods, and the benefits such as higher cutting speeds, reduced tool wear, and longer tool life.
The document also details power‑supply requirements, height‑setting mechanisms (including digital and mechanical options), cooling configurations (air‑box and water‑cooling), and safety precautions. Installation steps, connector types, and recommended accessories for each model are provided. This manual is written in Chinese.
| Low‑voltage auxiliary power | AC 1×230 V + PE/1A50‑60 Hz |
|---|---|
| Height setting range | 0 mm – 240 mm |
| Water‑cooling pressure | 5 – 7 bar, 700 min |
The height‑setting system can be adjusted from 0 mm up to 240 mm.
EasyShrink 10 reaches operating temperature in about 10 seconds, while EasyShrink 5 takes about 30 seconds.
Both air‑cooled boxes (40 mm and 50 mm variants) and water‑cooled systems are supported, with optional digital height‑setting integration.
