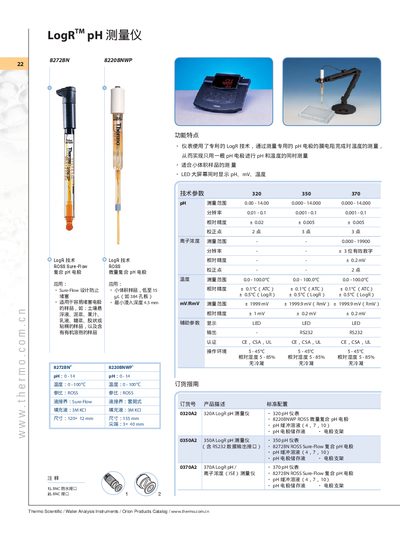

The LogR pH meter uses the patented LogR technology to measure the temperature by measuring the membrane resistance of a dedicated pH electrode, thus achieving pH and temperature measurement with only one pH electrode, suitable for small volume sample measurement
The LogR pH measuring instrument uses patented LogR technology to measure pH and temperature simultaneously with a single electrode. It offers a large LED display showing pH, mV and temperature, and supports 2‑point or 3‑point calibration for accurate results.
The instrument is available in several models (320, 350, 370) and includes options such as RS232 data output, explosion‑proof versions that meet US FM safety standards, and a rugged design suitable for field use. Technical specifications cover pH range 0‑14, temperature range 0‑100 °C, and various accuracy and resolution options. This manual is written in Chinese.
| pH measurement range | 0.00‑14.00 |
|---|---|
| Resolution | 0.01‑0.1 |
| Relative accuracy (pH) | ±0.02 |
| Temperature measurement range | 0.0‑100.0 °C |
| Display | LED large screen showing pH, mV, temperature |
| Data output | RS232 |
| Power source | 3 × AA alkaline batteries |
| Certifications | CE, CSA, UL, FM (explosion‑proof version) |
| Operating temperature | 5‑45 °C |
| Relative humidity range | 5‑85 % |
It measures pH from 0.00 to 14.00.
Yes, a fire‑spark‑proof version is available and meets US FM safety requirements.
It is powered by three AA alkaline batteries.
