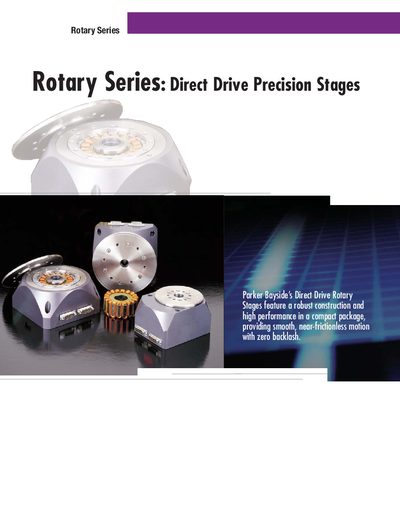

Parker Bayside's Direct Drive Rotary Stages are precision direct drive rotary stages, providing smooth, near-frictionless motion with zero backlash.
This manual describes Parker Bayside’s Direct Drive Rotary Series, which use an integral brush‑less DC servomotor to deliver zero‑backlash, near‑frictionless motion and high torque in a compact package. It includes performance specifications, encoder data, motor details, dimensions, and optional accessories for the R100D, R150D, and R200D models.
The document also contains ordering information, part numbers for power and sensor cables, and guidance on selecting couplings, mounts, and home sensors. Additional sections cover the Worm Drive version of the series and provide dimensional tables for various table diameters and gear ratios.
| Axial Capacity (kgf) – R100D | 75 |
|---|---|
| Axial Capacity (kgf) – R150D | 150 |
| Motor Voltage (V) – R100D | 75 |
| Motor Voltage (V) – R150D | 210 |
The R150D has an axial load capacity of 150 kgf.
The 3‑meter power cable is part number 10963018‑3000.
