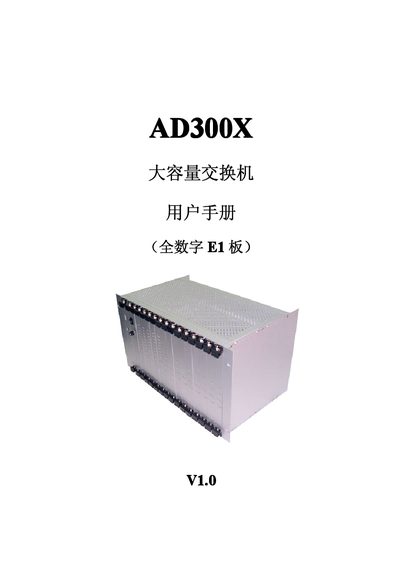

AD300X large capacity switch user manual, introduces the structure, installation, basic settings, software configuration and other content of the switch
This manual describes the AD300X high‑capacity digital switch developed by Laixun. It covers system overview, hardware architecture, interface specifications, and supported CTI features such as voice, conference, and fax services.
Installation steps, basic settings, software configuration, call record handling, and troubleshooting procedures are detailed, along with hardware specifications, power requirements, and environmental limits for proper deployment in telecom environments. This manual is written in Chinese.
| Chassis width | 19 inches |
|---|---|
| Dimensions | 480 mm × 365 mm × 40 mm |
| Business slots on backplane | 12 |
| E1 interfaces | 4 |
| Console port | 1 |
| LAN ports | 1 |
| Ethernet ports | 3 |
The AD300X provides four E1 interfaces.
The chassis measures 480 mm × 365 mm × 40 mm.
