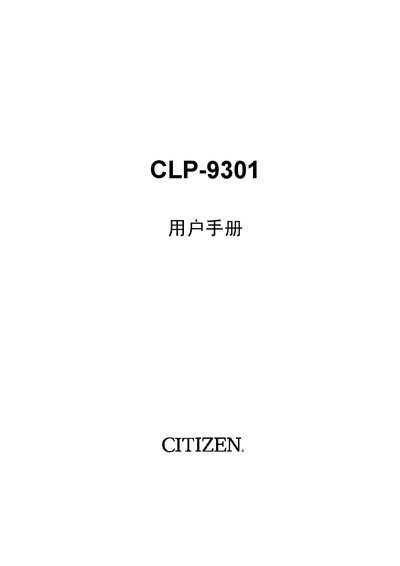

This manual is the user manual for CL-9301. It introduces the features and characteristics of the product in detail, including safety instructions, cleaning and maintenance, power connection, maintenance and maintenance, etc.
This manual covers important safety instructions, unpacking, and installation of the Citizen CLP-9301 label printer. It explains the printer’s design features, media handling, and how to connect power and interfaces.
Detailed chapters guide users through menu configuration, troubleshooting, routine maintenance, and provide full technical specifications such as print resolution, speed, and supported interfaces. This manual is written in Chinese.
| Print method | Thermal transfer / direct thermal |
|---|---|
| Print resolution | ≈300 dpi (12 dots/mm) |
| Maximum print width | 105.7 mm (4.16 in) |
| Interfaces | RS‑232C serial (115.2 kbps) and Centronics parallel; optional USB, Ethernet, IEEE1284ECP |
| Power consumption | 235 VA operating, 50 VA standby |
It includes a standard RS‑232C serial port (up to 115.2 kbps) and a Centronics parallel port, with optional USB, Ethernet, and IEEE1284ECP add‑on modules.
The printer can print up to 105.7 mm (4.16 in) wide labels.
It operates on 220‑240 V, 1.5 A, 50/60 Hz, consuming about 235 VA during operation and 50 VA in standby.
Yes, the CLP-9301 is capable of both thermal‑transfer and direct‑thermal printing.
