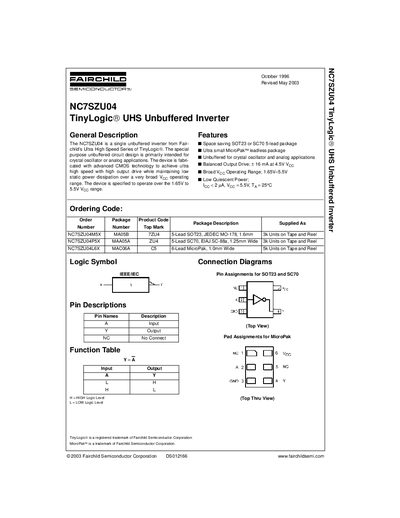

NC7SZU04 is a single unbuffered inverter from Fairchild's Ultra High Speed Series of TinyLogic®. The special purpose unbuffered circuit design is primarily intended for crystal oscillator or analog applications. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range.
The NC7SZU04 is a single unbuffered inverter from Fairchild's Ultra High Speed TinyLogic series, intended for crystal oscillator or analog applications. It is fabricated with advanced CMOS technology to provide high speed, balanced output drive, and low static power across a broad supply voltage range.
Key specifications include a 1.65 V to 5.5 V operating voltage, +16 mA output drive at 4.5 V, and a maximum output current of 50 mA. The device is offered in compact SOT23, SC70, and lead‑less MicroPak packages, with detailed mechanical dimensions and tape‑and‑reel handling information provided.
| Operating Voltage Range | 1.65 V – 5.5 V |
|---|---|
| Balanced Output Drive | +16 mA at 4.5 V |
| Maximum Output Current | 50 mA |
| Quiescent Power | Low (log < 2A) |
It operates from 1.65 V up to 5.5 V.
The maximum output current is 50 mA.
The device can deliver a balanced output drive of +16 mA at 4.5 V.
