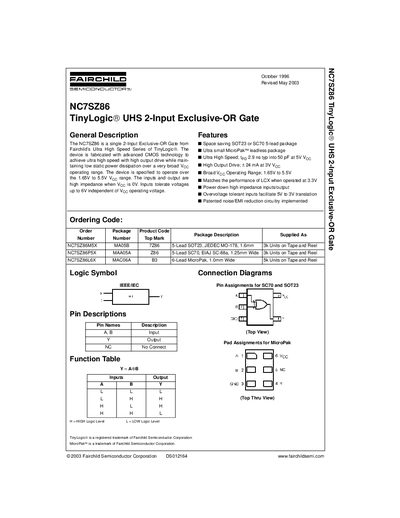

The NC7SZ86 is a single 2-Input Exclusive-OR Gate from Fairchild's Ultra High Speed Series of TinyLogic
The NC7SZ86 is a 2‑Input Exclusive‑OR gate from Fairchild’s TinyLogic Ultra‑High‑Speed series. It is offered in compact SOT23, SC70 and lead‑less MicroPak packages and operates over a wide supply range with low static power.
The document provides absolute maximum ratings, DC and AC electrical characteristics, ordering information, tape‑and‑reel specifications and mechanical dimensions, as well as a life‑support policy disclaimer.
| Typical Propagation Delay | 2.9 ns typ into 50 pF at 5 V |
|---|---|
| Input Voltage Tolerance | Up to 6 V independent of Vcc |
Typical propagation delay is 2.9 ns into a 50 pF load at 5 V.
No, Fairchild does not authorize its use as a critical component in life‑support systems.
