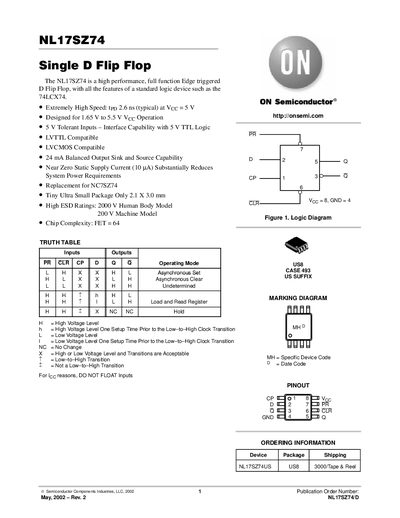

The NL17SZ74 is a high performance, full function Edge triggered D Flip Flop, with all the features of a standard logic device such as the 74LCX74. Its features include extremely high speed, wide input voltage range, large output current, extremely low static supply current, ESD protection, etc.
The NL17SZ74 is a high‑performance, edge‑triggered single D flip‑flop offering extremely fast propagation (tpp 2.6 ns typical) and low static supply current. It operates from 1.65 V to 5.5 V, is 5 V‑tolerant, LVTTL/LVCMOS compatible, and features high ESD protection.
The datasheet provides detailed maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitance values, and ordering information. Package dimensions are 2.1 mm × 3.0 mm (US‑8 reel), and the part is supplied in tape‑and‑reel format.
| Typical propagation delay (tpp) | 2.6 ns |
|---|---|
| Supply voltage range | 1.65 V – 5.5 V |
| High‑level input voltage (Vih) typical | 0.75 × VCC |
| Low‑level input voltage (Vil) typical | 0.25 × VCC |
| Power dissipation (85 °C, still air) | 250 mW |
| ESD rating (Human Body Model) | >2000 V |
| Package size | 2.1 mm × 3.0 mm |
The typical propagation delay (tpp) is 2.6 ns.
It operates from 1.65 V to 5.5 V.
The device is rated for >2000 V HBM and >200 V machine model.
The package measures 2.1 mm by 3.0 mm.
