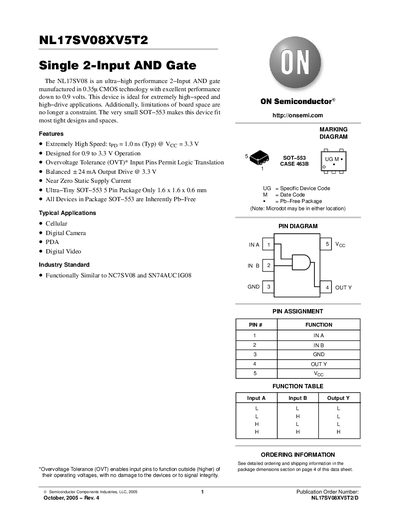

The NL17SV08 is an ultra-high performance 2-input AND gate manufactured in 0.35μm CMOS technology with excellent performance down to 0.9 volts. This device is ideal for extremely high-speed and high-drive applications. Additionally, limitations of board space are no longer a constraint. The very small SOT-553 makes this device fit most tight designs and spaces.
The NL17SV08XV5T2 is an ultra‑high performance 2‑input AND gate fabricated in 0.35 µm CMOS technology. It offers extremely fast propagation (tpp = 1.0 ns) and a balanced +24 mA output drive at 3.3 V, while consuming near‑zero static supply current. The device is housed in an ultra‑tiny SOT‑553 5‑lead package measuring only 1.6 × 1.6 × 0.6 mm, making it suitable for space‑constrained designs.
Typical applications include cellular devices, digital cameras, PDAs, and digital video equipment. The part is supplied in tape‑and‑reel form (order number NL17SV08XV5T2, SOT‑553 package) and is Pb‑free. Detailed electrical characteristics, maximum ratings, and recommended operating conditions are provided for designers.
| Propagation delay (tpp) | 1.0 ns |
|---|---|
| Output drive current | +24 mA @ 3.3 V |
| Supply voltage range (recommended) | 0.9 V – 3.6 V |
| Package type | SOT‑553 5‑lead |
| Package dimensions | 1.6 × 1.6 × 0.6 mm |
The device is recommended to operate with a supply voltage between 0.9 V and 3.6 V.
It is supplied in a 5‑lead SOT‑553 package.
The typical propagation delay is 1.0 ns.
It can drive up to +24 mA at a 3.3 V supply.
