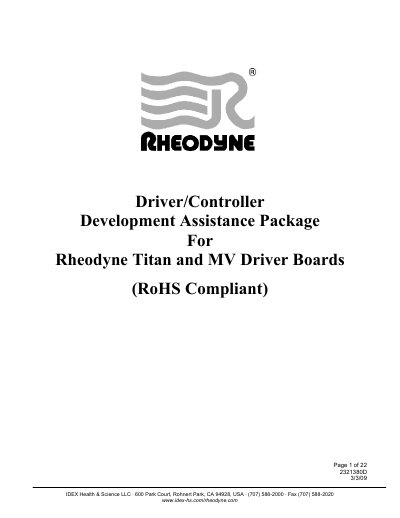

This manual introduces the development and use of Rheodyne Titan and MV driver boards, including information on the connector pins, command modes, and serial communications of each type of driver board.
This document, provided by IDEX Health & Science, assists OEM developers in designing drive and control circuitry for Rheodyne motorized valves. It details the specifications, connector pin‑outs, power requirements, and command modes for the TitanEX/TitanHP, Mighty Valve, TitanDX, and TitanEZ 20 MHz driver boards.
The manual includes wiring diagrams, dimensional drawings, and a demonstration kit list, enabling users to integrate the driver boards with Rheodyne valves using digital logic or serial interfaces such as I²C (RheoLink) and UART.
| Mighty Valve power supply | 24 VDC, 1.0 A regulated |
|---|
