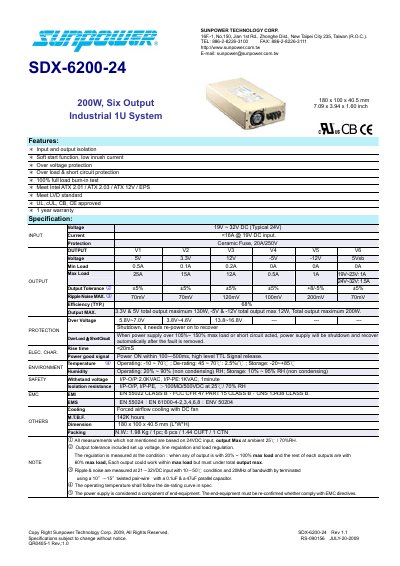

SDX-6200-24 is a 200W power module produced by Sunpower Technology Corp. that has input and output isolation, soft start function, low inrush current, overvoltage protection, overload and short circuit protection, 100% full load burn-in test, meet Intel ATX 2.01 / ATX 2.03 / ATX 12V / EPS, meet LVD standard, UL, cUL, CB, CE certification, 1 year warranty.
The SDX-6200-24 is a 1U industrial power supply that complies with Intel ATX 2.01/2.03/12V/EPS specifications. It features input and output isolation, soft‑start, over‑voltage, overload and short‑circuit protection, and has UL, cUL, CB and CE certifications.
The unit operates from 19 V‑32 V DC (typical 24 V) input, delivering six regulated outputs with tight tolerance (±5 % or +8/‑5 % for –5 V) and ripple limits of 70‑200 mV. It includes forced‑air cooling, a power‑good signal, and operates from –10 °C to 70 °C.
| Input voltage range | 19 V ~ 32 V DC (Typical 24 V) |
|---|---|
| Maximum input current | <16 A @ 19 V DC |
| Output voltages | 5 V, 3.3 V, 12 V, -5 V, -12 V, 5 Vsb |
| Maximum total output power | 200 W |
| Output tolerance | ±5 % (±8/‑5 % for –5 V) |
| Ripple / noise (max) | 70 mV (5 V, 3.3 V, -12 V, 5 Vsb), 120 mV (12 V), 200 mV (-5 V) |
| Typical efficiency | 68 % |
| Power‑good rise time | <20 ms |
| Operating temperature range | -10 °C ~ 70 °C |
| Dimensions (L×W×H) | 180 mm × 100 mm × 40.5 mm |
| Certifications | UL, cUL, CB, CE, FCC Class B, EN 55022, EN 55024 |
It accepts 19 V to 32 V DC, with a typical input of 24 V.
The unit provides input and output isolation, soft‑start, over‑voltage, overload and short‑circuit protection.
The power supply can deliver up to 200 W total across all six outputs.
It operates from –10 °C up to 70 °C.
