This product is a 0.100 inch crimp terminal housing with locking wire ferrule and polarity ribs. It has high voltage and vibration performance.
The KK series from Molex provides 0.100" pitch crimp terminals for a range of wire gauges (22‑30 AWG). These connectors feature a brass contact, UL94V‑0 insulation, and a locking latch for secure connections.

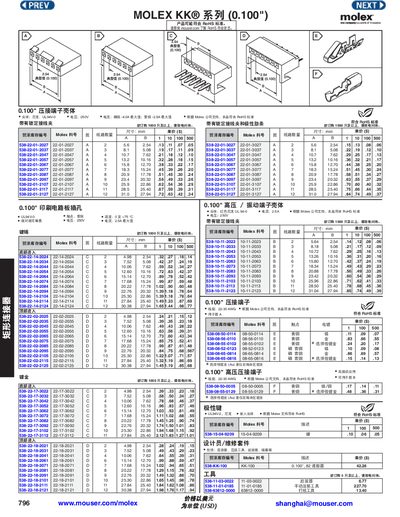

The sheet lists part numbers, mechanical dimensions, electrical ratings (250 V, 2.5 A), temperature range (0 °C to +75 °C), and confirms RoHS compliance. Ordering information and pricing are also included. This manual is written in Chinese.
| Pitch | 0.100" |
|---|---|
| Voltage rating | 250 V |
| Temperature range | 0 °C to +75 °C |
| Insulation material rating | UL94V‑0 |
| Wire gauge range | 22‑30 AWG |
| RoHS compliance | Yes |
The terminals have a 0.100" pitch.
Yes, they meet RoHS standards.
They are rated for 250 V.
