The EC Series provides IT and medical safety approvals, a small package measuring only 2” x 3” x 0.95”, <0.3 W no-load input power, and convection cooling. It meets the IEC 60950 and IEC 60601 standards and supports a temperature range of -20 °C to +70 °C. A 3-year warranty is also included.

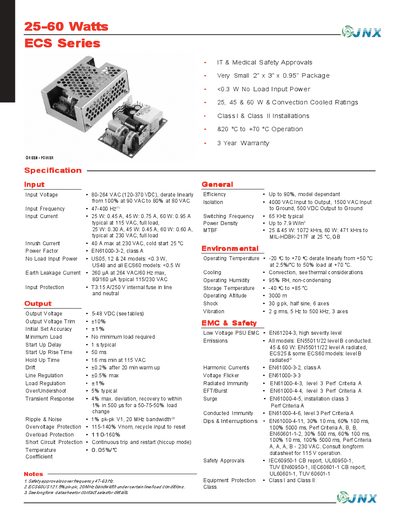

The document provides a complete set of electrical specifications, safety approvals, and environmental ratings for the ECS Series of low‑power AC‑DC converters ranging from 25 W to 60 W. It lists input voltage ranges, output voltages, current limits, efficiency, and protection features for each model (ECS25, ECS45, ECS60).
Mechanical drawings, connector pinouts, mounting dimensions, and thermal considerations are also included, along with compliance information for standards such as EN61000‑3‑2, IEC‑60950‑1, and UL‑60950‑1. The data sheet is intended for designers and system integrators who need detailed product parameters.
| Input Voltage Range | 80‑264 VAC (120‑370 VDC) |
|---|---|
| Output Voltage (ECS25US12) | 12.0 VDC |
| Output Current (ECS45US05) | 6.00 A |
| Maximum Input Current (230 VAC, 60 W) | 0.60 A |
| Efficiency | Not specified in excerpt |
They accept 80‑264 VAC (120‑370 VDC).
The ECS25US12 model provides a 12.0 VDC output.
Yes, they meet standards such as EN61000‑3‑2, EN55011/22, IEC‑60950‑1, and UL‑60950‑1.
