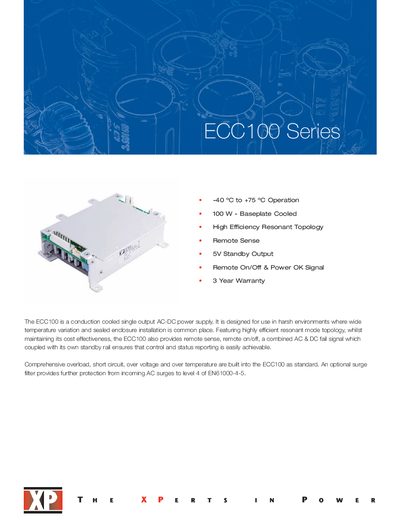

The ECC100 is a conduction cooled single output AC-DC power supply designed for use in harsh environments with wide temperature variation and sealed enclosure installation. It features highly efficient resonant mode topology, while maintaining cost effectiveness. The ECC100 also provides remote sense, remote on/off, and a combined AC & DC fail signal, along with its own standby rail for control and status reporting. It has comprehensive overload, short circuit, over voltage, and over temperature protection. An optional surge filter provides further protection from incoming AC surges to level 4 of EN61000-4-5.
The ECC100 is a conduction‑cooled single‑output AC‑DC power supply designed for harsh environments with wide temperature ranges and sealed enclosures. It uses a high‑efficiency resonant topology and offers remote sense, remote on/off, and combined AC & DC fault signals.
The manual lists model variants (e.g., ECC100US12, ECC100US48), key electrical characteristics, protection features, and signal definitions such as Power OK, Remote Sense, and Standby Supply. It also includes thermal design guidance and contact information for XP Power worldwide.
| Output Power | 100 W |
|---|---|
| Efficiency (full load) | 88 % |
| Isolation (Input‑to‑Output) | 4000 VAG |
| Switching Frequency | 70 kHz |
| Weight | 7 lb |
| Standby Supply | 5 V / 0.5 A |
The unit provides a 5 V / 0.5 A standby supply that is always present when AC is supplied.
The ECC100 includes overload, short‑circuit, over‑voltage, and over‑temperature protection as standard.
The ECC100 achieves an efficiency of 88 % at full load.
