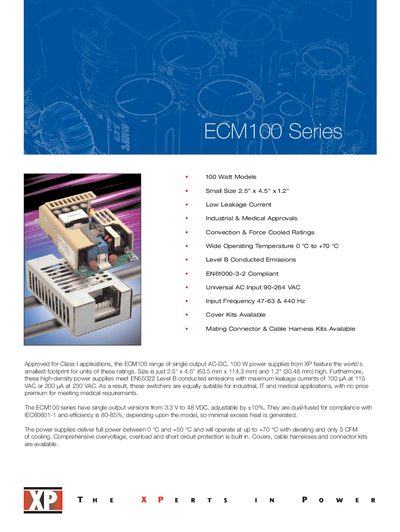

ECM100 series is a series of 100 watt single output AC-DC power supplies from XP. These power supplies meet EN55022 Level B conducted emissions requirements with maximum leakage currents of 100µA @ 115VAC or 200µA @ 230VAC. They are suitable for industrial, IT and medical applications
The ECM100 series provides compact 100 W AC‑DC power supplies with a footprint of 2.5" × 4.5" × 1.2" and universal AC input of 90‑264 VAC. They meet EN55022 Level B emissions, EN61000‑3‑2 compliance, and have industrial, IT and medical approvals. The units operate from 0 °C to +70 °C (full power to +50 °C) and feature convection cooling with 5 CFM airflow.
Available in single‑output versions from 3.3 V to 48 V (adjustable ±10%) and multi‑output configurations, the supplies deliver 80‑85 % efficiency, dual‑fuse protection for IEC 60601‑1 compliance, and built‑in over‑voltage, overload, and short‑circuit protection. Mechanical details, connector kits, and cover options are provided for flexible integration.
| Input Voltage | 90‑264 VAC |
|---|---|
| Output Voltage Range | 3.3 V‑48 VDC |
| Efficiency | 80‑85 % |
| Operating Temperature | 0 °C to +70 °C |
| Cooling Airflow | 5 CFM |
| Weight | ≈0.4 lb (180 g) |
| Input Frequency | 47‑63 Hz (and 440 Hz optional) |
| Power Density | 7.40 W/?? |
The ECM100 series accepts a universal AC input from 90 VAC to 264 VAC.
The units achieve an efficiency of 80 % to 85 % depending on the model and load.
Yes, the ECM100 series meets IEC 60601‑1 requirements and carries medical approvals.
Full‑power operation requires 5 CFM of convection cooling.
