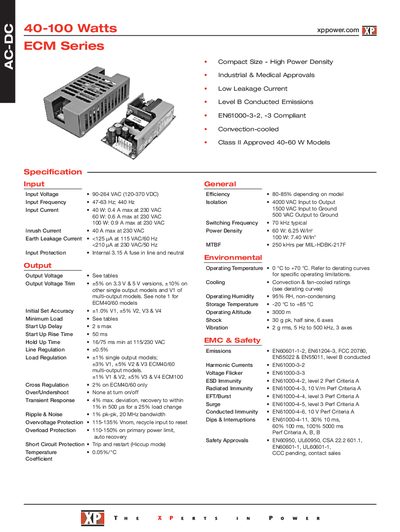

The ECM Series from XP Power includes compact, high‑power‑density power supplies ranging from 40 W to 100 W. They are convection‑cooled, meet industrial and medical approvals, and comply with EN61000‑3‑2/‑3 emissions standards.
The document lists detailed electrical specifications, mechanical dimensions, connector information, derating curves, and safety features such as overload, short‑circuit, and surge protection. It also provides model‑specific ratings for single‑ and multi‑output versions.
| Input Voltage | 90‑264 VAC (120‑370 VDC) |
|---|---|
| Efficiency | 80‑85 % (depending on model) |
| Switching Frequency | 70 kHz typical |
| Power Density (60 W model) | 6.25 W/in³ |
| MTBF | 250 khrs per MIL‑HDBK‑217F |
| Safety Approvals | EN60950, UL60950, CSA 22.2 601.1 |
The ECM series accepts an input voltage of 90‑264 VAC (120‑370 VDC).
The ECM series is approved to EN60950, UL60950, and CSA 22.2 601.1 standards.
The typical switching frequency is 70 kHz.
Efficiency ranges from 80 % to 85 % depending on the model.
