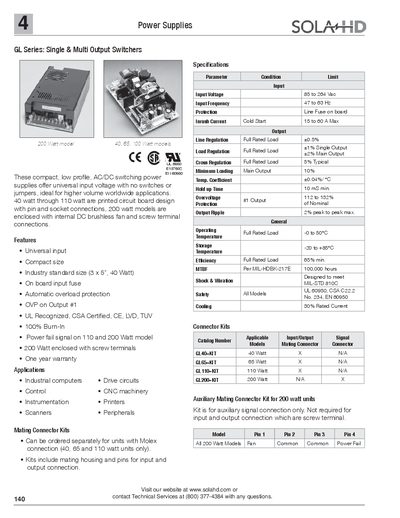

This document describes the features and characteristics of Solahd's GL series power supplies, including single and multi-output switchers, different wattage models, compact size, universal input voltage, automatic overload protection, etc.
The GL Series includes single‑output and multi‑output switch‑mode power supplies designed for industrial computers, drive circuits, CNC machinery, instrumentation, printers and scanners. All models have universal input voltage, on‑board fuse, automatic overload protection and OVP on Output #1.
Connector kits (e.g., GL40‑KIT, GL65‑KIT, GL110‑KIT) provide optional Molex mating housings for input and output connections. Detailed selection tables list voltage, current and power ratings for each wattage model, and dimensions are given in inches and millimetres.
| Input Voltage | 85 to 264 Vac |
|---|---|
| Input Frequency | 47 to 63 Hz |
| Efficiency (Full Rated Load) | ≥65 % |
| Operating Temperature (Full Rated Load) | -0 to 50 °C |
| Overvoltage Protection #1 Output | 112 to 132 % of nominal |
| MTBF | 100,000 hours |
The input voltage range is 85 to 264 Vac.
The series is UL Recognized, CSA Certified, CE, LVD and TUV approved.
The 200 W model provides up to 200 W of output power.
The GL40‑KIT is the optional connector kit for the 40 W unit.
