IEI Technology IOWA-LX-600 Half-size CPU Card User Manual

This user manual introduces the features and characteristics of the IOWA-LX-600 Half-size CPU card.

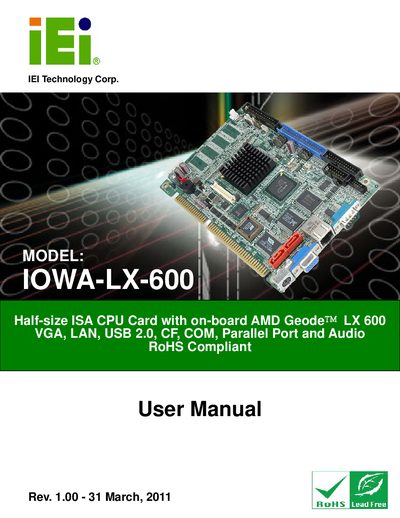

IEI Technology IOWA-LX-600 Half-size CPU Card User Manual - cover page
Brand
IOWA-LX-600
Category
Other Electronics
Document type
User Manual
Language
English
Pages
159
File format
PDF
File size
8.4 MB
Published
04 January, 2012
Updated
30 September, 2023
MD5 checksum
163FFC3E46142D497D8DA276B53EC73B
PDF
IEI Technology IOWA-LX-600 Half-size CPU Card User Manual PDF

About this manual

This manual describes the IOWA-LX-600 half-size ISA CPU card, which integrates an AMD Geode™ LX 600 processor and a range of interfaces such as VGA, LAN, USB 2.0, CompactFlash, COM, Parallel Port and Audio. It includes product benefits, technical specifications, dimensions and data flow diagrams.

The document covers unpacking, anti‑static precautions, connector pin‑outs, installation steps for memory, CF card and jumpers, BIOS configuration, operating system setup and RoHS compliance. Safety warnings and hazardous material disclosures are also provided.

What's inside

  • Introduction
  • Features
  • Connectors
  • Installation
  • BIOS Setup
  • Safety Precautions
  • Technical Specifications
  • Unpacking
  • Dimensions

Specifications

ProcessorAMD Geode™ LX 600
InterfacesVGA, LAN, USB 2.0, CompactFlash, COM, Parallel Port, Audio
RoHS ComplianceYes

Frequently asked questions

What anti‑static precautions should be taken when handling the IOWA‑LX‑600?

Follow the anti‑static precautions described in section 2.1 of the manual.

How do I install the CompactFlash card on the IOWA‑LX‑600?

Refer to section 4.5 CF CARD INSTALLATION for step‑by‑step instructions.

What BIOS options are available for the IOWA‑LX‑600?

The BIOS screen and its standard and advanced features are detailed in section 5 of the manual.

Is the IOWA‑LX‑600 RoHS compliant?

Yes, the product is RoHS compliant as stated on the cover page.

Download PDF (8.4 MB)
