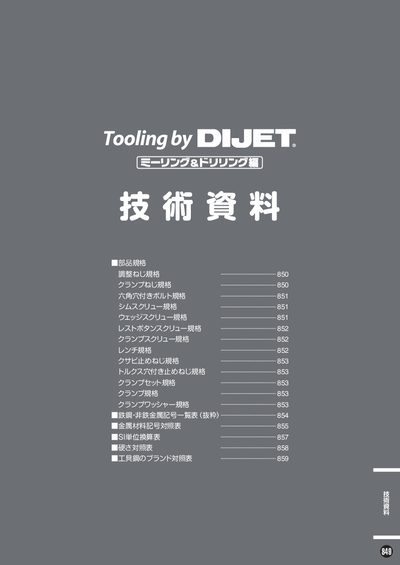

The document is a technical data sheet that includes specifications for various components and a comparison table for metal materials. It introduces specifications for adjusting screws, clamp screws, hex socket bolts, shim screws, wedge screws, rest button screws, clamp set screws, wrenches, dowel screws, Torx screws, clamp sets, clamps, and clamp washers. It also provides a brand and hardness comparison table for tool steels. The document also includes detailed parameters for specific shaped products.
This manual provides tables of specifications for a wide range of tooling components, including clamp screws, bolt standards, wedge screws, and rest‑button screws. Each entry lists the part number, dimensions, drive type and the recommended tightening torque.
The document also includes material classification tables such as JIS steel grades, stainless‑steel designations and alloy codes, helping users select appropriate materials for their applications. This manual is written in Japanese.
| Recommended torque for CSW‑1838 | 63 Nm |
|---|---|
| Recommended torque for CSW‑2542 | 55 Nm |
| Recommended torque for ESW‑405 | 27 Nm |
The recommended torque for CSW‑1838 is 63 Nm.
SUS‑304 is listed with the AISI 304 designation.
The LS‑110 clamp screw uses an M6×0.75 drive.
