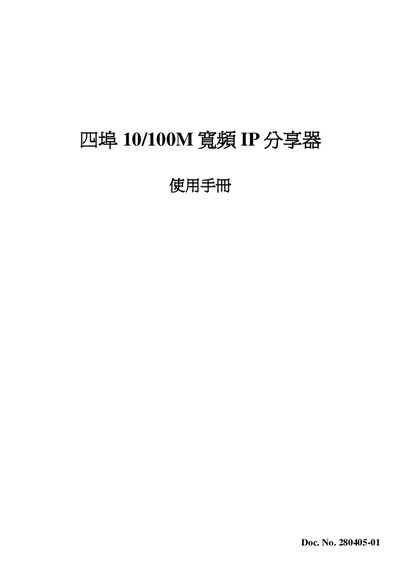

4Port 10/100M Broadband IP Share Guide

This manual provides detailed information on the features and usage of the Quad 10/100M Broadband IP Router

Brand: 四埠
Category: Router
Document type: User Manual
Language: English
Pages: 41
File format: PDF
File size: 1.2 MB
Published: 04 January, 2012
Updated: 30 September, 2023
MD5 checksum: 1D95D9D6F0DF5C1EA104089803E8D85D
PDF: 4Port 10/100M Broadband IP Share Guide PDF

About this manual

This guide provides setup instructions, FCC and CE compliance information, and detailed configuration options for the 4‑port 10/100 Mbps broadband IP share device. It covers hardware ports, network protocols, and safety measures.

The document explains how to configure LAN/WAN ports, DHCP client/server settings, dynamic DNS, VPN, UPnP, and other features. It also includes troubleshooting tips for radio interference and reset procedures.

What's inside

FCC and CE Compliance
Hardware Port Overview
LAN/WAN Configuration
DHCP Client and Server Settings
Dynamic DNS and VPN
UPnP and Security Features
Reset and Factory Defaults
Troubleshooting Interference

Specifications

Ethernet Speed	10/100 Mbps
Number of LAN Ports	4
WAN Port Speed	10/100 Mbps
Supported VPN Protocols	PPTP, IPSec
UPnP Support	Enabled
Dynamic DNS	Supported

Frequently asked questions

What does the FCC certification state for this device?

The equipment complies with Part 15 of the FCC rules and may not cause harmful interference, and must accept any interference received.

How can I reset the device to factory defaults?

Use the factory reset function indicated in the manual (see the Reset section).

What are the default IP address ranges for the LAN ports?

The LAN ports use the 192.168.1.x address range, e.g., 192.168.1.1 to 192.168.1.254.

What security features are included to prevent interference?

The device includes URL blocking, DoS protection, IP spoofing prevention, and packet filtering.
