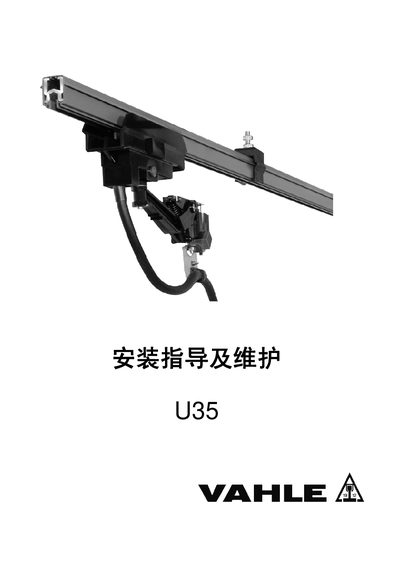

This document is a guide for the installation and maintenance of the U35 conductor system. It provides instructions on the installation steps, required tools, and the installation methods for brackets, insulation clamps, conductors, and bolted joints. It also covers the preparation of conductor sections and the installation of expansion sections. The U35 conductor system is suitable for straight and curved sections and has the ability to freely expand and contract.
The Vahle U35 service manual provides detailed technical data, including torque values for various bolt sizes, maximum permissible lengths at different temperatures, and air‑gap specifications. It contains multiple tables (T1‑T5) that list dimensional limits and tolerances for the product.
The document also includes reference values for torque (e.g., M6, M10, M12, M16) and guidance on installation parameters such as air‑gap distances and temperature‑dependent length limits. This information is intended for service technicians and engineers working with the U35 unit. This manual is written in German.
| Torque M8 | 12Nm |
|---|---|
| Torque M10 | 35 Nm |
| Torque M12 | 40 Nm |
| Torque M16 | 100 Nm |
| Maximum length at 30°C (Table T1) | 176 m |
| Maximum length at 50°C (Table T1) | 105.5 m |
The torque for an M12 bolt is 40 Nm.
The maximum length at 30 °C is 176 m according to Table T1.
The maximum length at 50 °C is 105.5 m as shown in Table T1.
