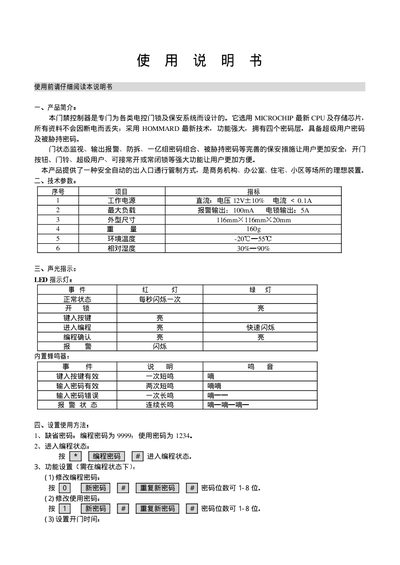

This file is the instruction manual for the door access controller, which mainly introduces the basic functions, usage methods, setup methods and extended functions of the door access controller
The document describes the hardware configuration, safety functions, and user‑adjustable settings of a smart door lock controller used in access‑control systems. It outlines the power requirements, dimensions, weight, and environmental limits of the device.
Detailed procedures cover password creation, alarm configuration, operation steps, and reset methods. Users are guided through setting passwords, handling alarm notifications, and performing a factory reset when needed. This manual is written in Chinese.
| Operating Voltage | 12 V |
|---|---|
| Maximum Current | 5 A |
| Dimensions | 116 mm × 116 mm × 20 mm |
| LED Display Brightness | 30 % to 90 % |
Enter the password setting mode, input the new password using the keypad, and confirm it as described in the password settings section.
The controller operates on a 12 V supply with a current draw of less than 0.1 A under normal conditions.
