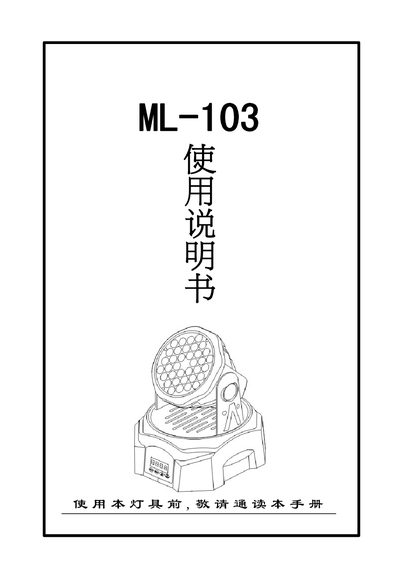

ML-103 use instructions, introduces the product's unpacking inspection, safety instructions, operating instructions, installation, function operation, channel function setting, technical parameters and other content
The ML-103 moving head light is a DMX‑controlled stage lighting fixture designed for theatres, studios and similar venues. It features 36 × 1 W LEDs, a 5600 K color temperature and 12 DMX channels for flexible control.
The manual provides step‑by‑step guidance on unpacking, safety precautions, installation, operation of the built‑in programs, channel configuration, and maintenance procedures such as fuse replacement and cleaning. This manual is written in Chinese.
| Power Supply Voltage | AC110/230V, 50‑60 Hz |
|---|---|
| Fuse | φ 5×20 mm, 2 A @230 V |
| Rated Power | 45 W |
| DMX Channels | 12 |
| Color Temperature | 5600 K |
| LED Count | 36 × 1 W LEDs |
| Maximum Ambient Temperature | 40 °C |
| Maximum Enclosure Temperature | 80 °C |
| Minimum Distance to Flammable Materials | 0.5 m |
| Dimensions (L×D×H) | 24 cm × 23 cm × 30 cm |
The fixture operates on AC 110 V or AC 230 V, 50‑60 Hz.
It provides 12 DMX channels.
The maximum ambient temperature is 40 °C.
