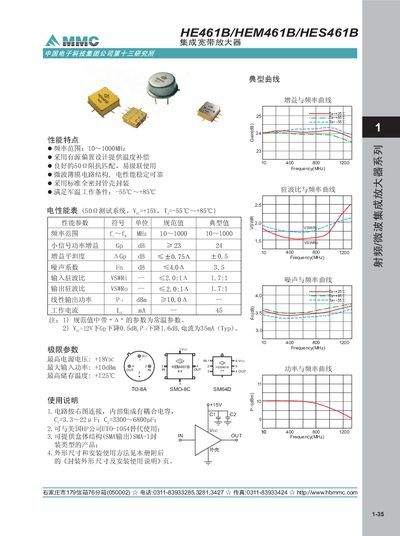

HE461B/HEM461B/HES461B integrated broadband amplifier is a RF/microwave integrated amplifier produced by HBMMC company. The frequency range is 10 to 1000MHz. It adopts active bias design to provide temperature compensation. It adopts standard fully sealed tube shell packaging and meets military working conditions: -55℃ to +85℃.
This manual describes the performance specifications of the HBM integration broadband amplifier, including impedance matching, VSWR, output power, and temperature ranges. It also lists the electrical characteristics such as supply voltage and typical gain values.
Installation information, mechanical dimensions, and mounting instructions are provided in the attached packaging drawing. Contact details for HBM support are included at the end of the document. This manual is written in Japanese.
| Impedance matching | 50 Ω |
|---|---|
| Input VSWR | 2.0:1 |
| Maximum output power | 110 dBm |
| Operating temperature range | -55°C to +85°C |
| Maximum storage temperature | +125°C |
The input VSWR is 2.0:1.
It operates from -55 °C to +85 °C.
The maximum output power is 110 dBm.
They are provided in the attached "封装外形尺寸及安装使用悦明" document.
