TEDGC series single-phase electric voltage regulator is an energy-saving and practical voltage regulator, which is widely used in industrial, agricultural, defense and scientific research fields.

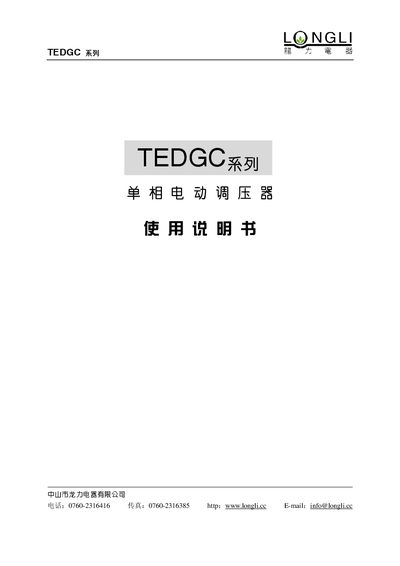

This manual introduces the Longli TEDGC series single‑phase electric voltage regulator, describing its features, technical specifications, and typical applications in industrial, agricultural, defense and research settings. It includes a schematic diagram, dimensions, and a detailed list of part names.
The document also covers installation guidelines, cable connections, operating procedures, safety precautions, and maintenance methods, helping qualified personnel install, use, and service the regulator safely and efficiently. This manual is written in Chinese.
| Capacity range | 2–60 kVA |
|---|---|
| Insulation level | A |
| Input voltage | 220 V |
| Insulation resistance | 5 MΩ |
| Output voltage | 0–250 V / 0–300 V |
| Frequency | 50 Hz |
| Waveform distortion | ≤0.1 % |
| Rated capacity (TEDGC‑2) | 2 kVA |
| Weight (TEDGC‑60) | 350 kg |
Press the manual raise button when the output voltage is lower than the load requirement until the desired voltage is reached.
