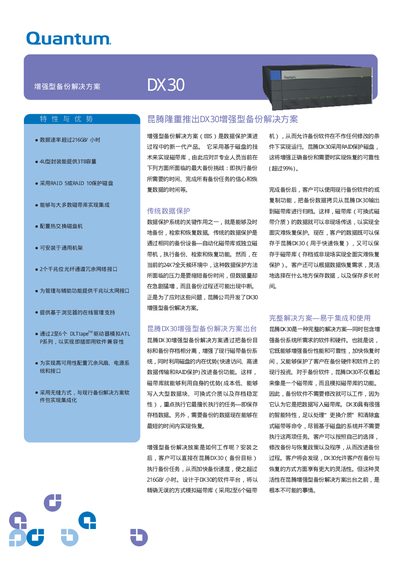

The Quantum DX30 Enhanced Backup Solution uses disk technology to implement a tape library, which can quickly back up data and ensure data security with reliable RAID protection. The solution can also store archived data in the tape library, which provides comprehensive disaster recovery protection.
The Quantum DX30 provides an enhanced backup solution (EBS) that combines disk‑based storage with RAID‑5 or RAID‑10 protection, delivering data rates over 216 GB per hour. It can be integrated with most tape libraries, supports hot‑swap disks, and offers both Fibre Channel and Gigabit Ethernet interfaces for management and data transfer.
The system includes a one‑year onsite warranty with 5‑9 availability, and optional StorageCare services for installation, integration and support. Physical specifications feature a 19‑inch panel, 17.5‑inch rack width, 25.5‑inch depth, and power input of 100‑240 VAC with a maximum consumption of 575 W. This manual is written in Chinese.
| RAID 10 capacity | ≈2 TB |
|---|---|
| Data transfer rate | >216 GB/h |
| Fibre Channel ports | 2 (LC connectors) |
| Gigabit Ethernet ports | 2 |
| Power input voltage | 100–240 VAC |
| Maximum power consumption | 575 W |
| Panel width | 19.0 in (482.6 mm) |
| Depth | 25.5 in |
The DX30 can transfer data at a rate exceeding 216 GB per hour.
It supports both RAID 5 and RAID 10 for disk protection.
The system includes two Fibre Channel ports with LC connectors.
A one‑year onsite warranty with 5‑9 availability and next‑business‑day response is included.
