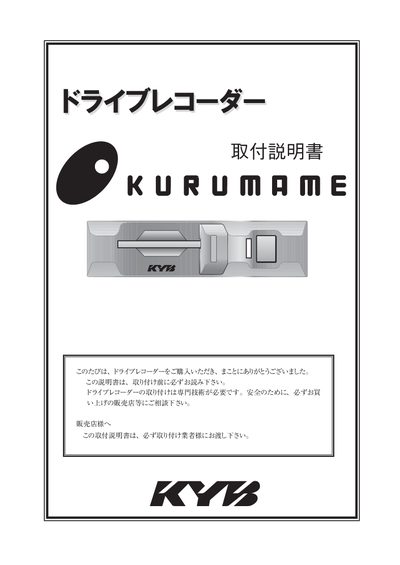

This manual is a must-read before installation. Installation requires professional skills. Please consult the dealer.
This manual provides step‑by‑step instructions for installing the KYB drive recorder in a vehicle. It includes safety warnings, wiring diagrams, and details on mounting the recorder, camera, and GPS antenna.
After installation, the guide explains how to configure settings, adjust the shooting angle, and verify that all vehicle electronics function correctly. Troubleshooting tips and specifications are also listed. This manual is written in Japanese.
| Operating temperature range | 0‑40 °C |
|---|---|
| Recorded data | date, time, video, vehicle speed, lateral G, longitudinal G |
| Dimensions (recorder) | W100 mm × H26 mm × D75 mm (excluding protrusions) |
| Dimensions (camera) | W37 mm × H37 mm × D35 mm (excluding bracket) |
| Weight (recorder) | 160 g |
| Weight (camera) | 113 g (cable 4 m + bracket excluded) |
| Operating current | ≤0.8 A (DC 12 V) |
| Operating voltage | DC 12 V – DC 24 V |
| Camera sensor | CCD, 270 k pixels |
| Recording media | Dedicated CF card |
| Image compression | JPEG |
| Shock sensor axes | Front‑rear (X) and left‑right (Y) |
| Maximum recording time per event | 30 seconds |
Use the specified capacity fuse; using a higher‑capacity fuse can cause fire or failure.
No. Inserting or removing the CF card while the LED is lit may destroy the data on the card.
