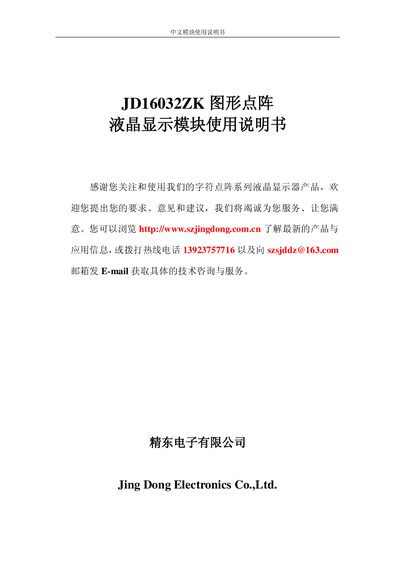

JD16032ZK Graphics Dot Matrix Liquid Crystal Display Module User Manual, introduces the module overview, basic characteristics, appearance size, module pin description, etc.
The JD16032ZK is a 160 × 32 dot matrix graphics LCD module that can display Chinese characters and graphics. It includes a built‑in GB2312 Chinese character library (16×16) and supports both 8‑bit parallel and serial interfaces for direct CPU connection.
The manual details the module’s physical dimensions, electrical characteristics, pinout, hardware interface timing, command set, display status controls, and includes example code for 51‑series microcontrollers. This manual is written in Chinese.
| Physical size | 116.0 × 59.0 × 13.3 mm |
|---|---|
| Viewable area | 86.0 × 19.0 mm |
| Display type | Yellow background, black characters LCD |
| Viewing angle | 6 degrees |
| Drive method | 1/32 duty, 1/6 bias |
| Operating voltage (VDD) | 4.5 – 5.5 V |
| LCD driver voltage (VO) | 0 – ‑10 V |
| Operating temperature | -20 °C – 70 °C |
| Storage temperature | -30 °C – 80 °C |
It supports two interface modes: an 8‑bit parallel connection and a serial connection.
The module operates with a supply voltage (VDD) of 4.5 V to 5.5 V.
