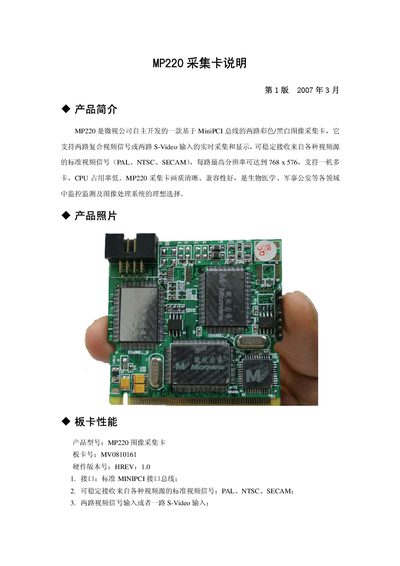

MP220 is a MiniPCI bus-based two-channel color/black and white image capture card developed by Weishi Company. It supports real-time capture and display of two composite video signals or two S-Video inputs. It can stably receive standard video signals (PAL, NTSC, SECAM) from various video sources. The maximum resolution of each channel can reach 768 x 576. It supports multiple cards in one machine with low CPU usage. MP220 capture card has clear image quality and good compatibility, making it an ideal choice for monitoring, surveillance, and image processing systems in various fields such as biomedical and military public security.
The MP220 is a MiniPCI‑based two‑channel color/black‑white image acquisition card developed by WeiShi. It supports composite video or S‑Video inputs and can capture standard PAL, NTSC, and SECAM signals up to a resolution of 768 × 576.
The manual covers card performance, system requirements (Pentium‑class CPU, 32 MB RAM, 2 MB video RAM, 20 MB free disk space, Windows 9x/2000/XP/NT), installation procedures, and detailed pin‑out diagrams for the video interface connectors. This manual is written in Chinese.
| Interface | MiniPCI |
|---|---|
| Supported Video Standards | PAL, NTSC, SECAM |
| Maximum Resolution | 768 × 576 |
| Pixel Depths | 8, 15, 16, 24, 32 bits |
| CPU Requirement | Pentium‑class CPU |
| Disk Space Requirement | At least 20 MB free hard‑disk space |
| Supported Operating Systems | Windows 9x, 2000, XP, NT |
It supports PAL, NTSC, and SECAM video standards.
The card can capture images up to 768 × 576 pixels.
A MiniPCI slot, Pentium‑class CPU, 32 MB RAM, 2 MB video RAM, at least 20 MB free disk space, and Windows 9x/2000/XP/NT are required.
