V300 is a high-quality standard color/black and white image acquisition card based on the PCI bus. It supports up to 6 composite video inputs and can accept S-Video input signals. It has real-time acquisition, real-time storage, real-time single-screen display functions, and various video image processing functions
The V300 is a video acquisition card that supports up to six video inputs and can capture both color and black‑white images. It offers real‑time capture, storage, and various image processing functions such as scaling, overlay, and annotation.

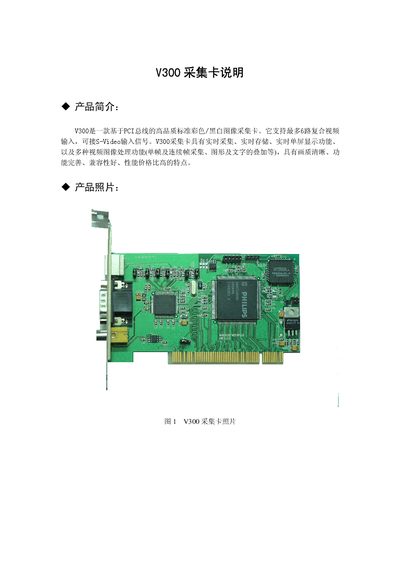

The document describes the board layout, pin definitions, required power and memory, PCI‑2.1 compliance, and the various video input formats (PAL, NTSC, SECOM) and color modes supported. Installation notes, interface wiring, and watchdog functions are also covered. This manual is written in Chinese.
| Image resolution (PAL) | 768×576 |
|---|---|
| Image resolution (NTSC) | 640×480 |
| Supported video standards | PAL, NTSC, SECOM |
| Color formats | RGB15, RGB16, RGB24, RGB32, YUV422, YUV411 |
| Bit depth (grayscale) | 8 Bit |
| Frame rate (PAL) | 25 fps |
| Frame rate (NTSC) | 30 fps |
| PCI version requirement | PCI 2.1 |
| Minimum power supply | 20 W |
| Minimum system memory | 64 MB |
The V300 can accept PAL, NTSC, and SECOM video signals.
