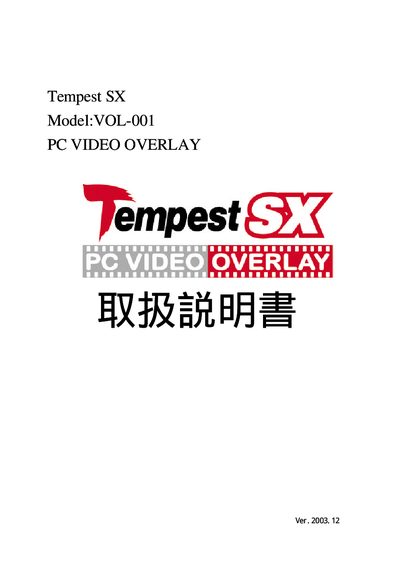

This is a user manual that introduces the use of Tempest SX Model:VOL-001 PC VIDEO OVERLAY.
The Tempest VOL-001 is a PC video overlay unit that combines VGA computer signals with NTSC video signals for display on televisions and other video equipment. It includes dedicated connectors, a T‑type cable, and an AC adapter for power.
This manual covers safety warnings, package contents, required PC and system specifications, detailed descriptions of each connector and button, installation and connection procedures, color‑key settings, remote‑controller functions, technical specifications, and a troubleshooting guide. This manual is written in Japanese.
| Supported video input format | NTSC |
|---|---|
| Power input options | AC adapter, USB power cable, or PS/2 power cable |
Refer to the connection diagram in the manual and verify that all cables are correctly connected, and ensure the TV is powered on and set to the correct channel.
