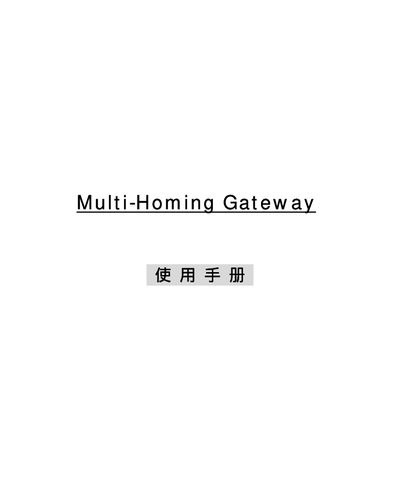

This manual introduces the use of Multi Homing Gateway products, including hardware installation, software installation, system management, interface addresses, address tables, service tables, scheduling tables, content control, virtual servers, regulation rules, VPN, monitoring records, alarm records, traffic statistics, system status and other contents.
This manual covers the hardware installation of the Multi‑Homing Gateway, describing the external ports (LAN, WAN 1, WAN 2, DMZ) and LED indicators. It explains how to connect the device to a network, set IP addresses, and access the web interface.
Further sections detail system management functions such as routing tables, DHCP, DNS proxy, VPN (IPSec, PPTP), traffic monitoring, alarm configuration, and firmware updates. The guide also includes examples of control policies and troubleshooting steps. This manual is written in Chinese.
| LAN Port IP address | 192.168.1.1 |
|---|---|
| WAN 1 Port IP address | 61.11.11.11 |
| WAN 2 Port IP address | 211.22.22.22 |
| DMZ Port IP address | 61.11.11.11 |
| Power LED indicator | Shows power status |
Open a web browser and navigate to http://192.168.1.1 to reach the device’s management page.
Press the RESET button on the unit; it restores the gateway to its original settings.
