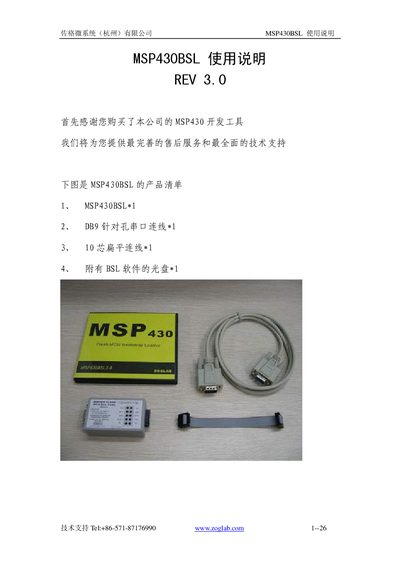

The MSP430BSL is a compact programming tool designed for Texas Instruments MSP430 FLASH series microcontrollers. It offers a graphical interface that lets users download code, read memory, and perform secure updates via a soft‑UART connection.
Key features include DB9 serial connectivity, support for all MSP430 FLASH devices, a small size (under 75 × 40 × 20 mm), and optional 256‑bit password protection. The manual details the BSL concept, hardware pin‑outs, and provides a full list of tested MSP430 parts. This manual is written in Chinese.
| Physical size | 75 × 40 × 20 mm |
|---|---|
| Connector | DB9 serial port |
| Supported devices | All TI MSP430 FLASH series chips (tested list provided) |
Bootstrap loader is a function unique to MSP430 FLASH series microcontrollers that resides in a dedicated boot area and allows code to be written to flash via a soft‑UART interface.
Connect the tool to the target using the DB9 serial cable as shown in the pin‑out tables; the interface follows the standard UART pins of the MSP430 device.
All MSP430 FLASH series devices are supported; Appendix A lists the specific models that have been tested, such as MSP430F110, MSP430F112, MSP430F1610, etc.
