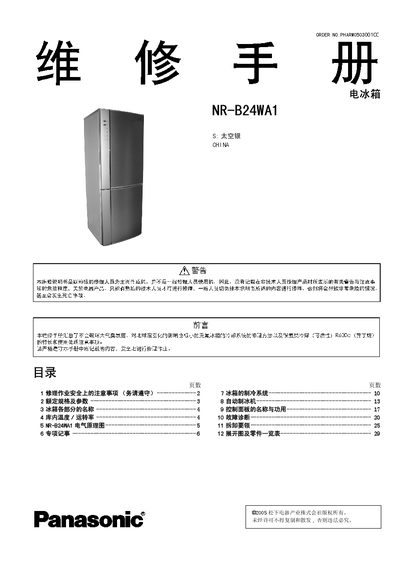

NR-B24WA1 refrigerator maintenance manual
This service manual is intended for trained technicians and provides detailed safety instructions, specifications, and repair procedures for the Panasonic NR‑B24WA1 refrigerator. It includes warnings about the flammable R600a refrigerant and required protective measures.
The document contains wiring diagrams, a complete parts list, and step‑by‑step guidance for disassembly, fault diagnosis, and re‑assembly of the cooling system, ice maker, and control panel. This manual is written in Chinese.
| Total usable capacity | 243 L |
|---|---|
| Refrigerated compartment capacity | 168 L |
| Freezer compartment capacity | 75 L |
| External dimensions (W×D×H) | 600 mm × 642 mm × 1650 mm |
| Rated voltage / current | 250 V / 6 A |
| Ice production per 24 h | 0.96 kg |
| Freezing capacity per 24 h | 12 kg |
| Energy efficiency class | 2 |
| Weight | 72 kg |
Provide at least 100 mm clearance at the back, top, and side of the unit; side clearance should be 20 mm or more.
The freezer compartment uses automatic defrost; the frost on the evaporator melts and drains into the water tray without manual intervention.
