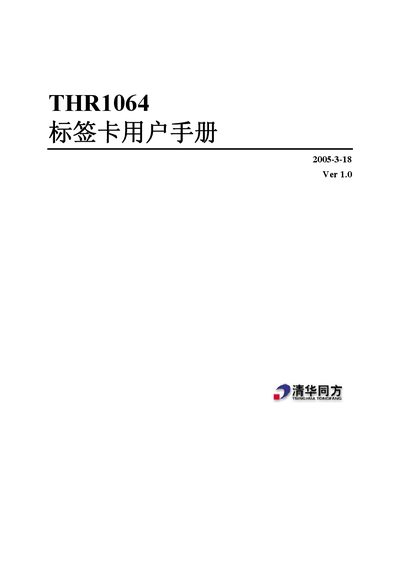

THR1064 Tag Card User Manual is the user manual of THR1064 Tag Card product, which mainly introduces the features and characteristics, communication protocol, working process, instruction set, storage area structure and typical applications of the product.
The THR1064 is a contactless label card produced by Tsinghua Tongfang that complies with the ISO/IEC 14443 Type‑B standard. It operates at 106 kbps, supports up to 15 cards simultaneously, and provides 64 bytes of EEPROM for user data.
The document covers an overview of the product, detailed communication protocol, operation flow, full command set, EEPROM allocation and access control, anti‑collision procedures, and includes an appendix with the CRC algorithm C code. This manual is written in Chinese.
| Supported Standard | ISO/IEC 14443 Type‑B |
|---|---|
| Communication Speed | 106 kbps |
| EEPROM Size | 64 bytes |
| EEPROM Data Retention | 10 years |
| EEPROM Write Endurance | 100 k cycles |
| Maximum Card Count | 15 cards |
| ESD Rating | 4000 V |
It is compatible with the ISO/IEC 14443 Type‑B standard.
The card communicates at 106 kbps.
It includes 64 bytes of EEPROM for user data.
