Yokoyama YM-1003 User Manual

This is the user manual of YM-1003 SS Evaluation Circuit Board, which introduces the features and usage of the product.

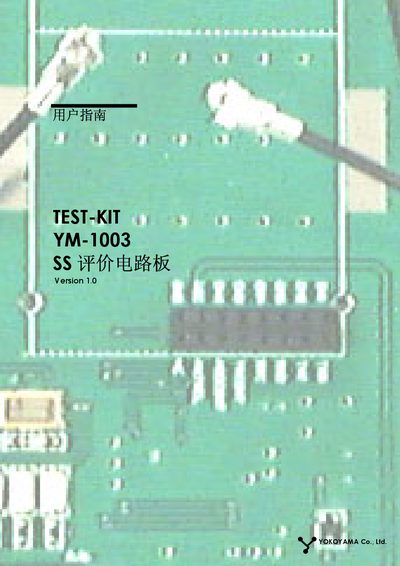

Yokoyama YM-1003 User Manual - cover page
Brand
TEST-KIT
Category
Other device
Document type
User Manual
Language
English
Pages
48
File format
PDF
File size
2.4 MB
Published
17 December, 2011
Updated
30 September, 2023
MD5 checksum
473B1FCA705FAAD3263B55DBF70BAC13
PDF
Yokoyama YM-1003 User Manual PDF

About this manual

This manual describes the YM-1003 test kit, including its hardware layout, top and bottom views, and key components. It also lists the RS‑232C communication parameters and power requirements needed for proper operation.

Contact information for Yokoyama Co., Ltd. is provided at the end of the guide, along with troubleshooting tips and basic usage instructions.

What's inside

  • Introduction
  • Hardware Overview
  • RS-232 Interface
  • Operation Instructions
  • Specifications
  • Contact Information

Specifications

Operating voltage3.2 V – 10 V
RS‑232 communication9600 bps, 8 data bits, 1 stop bit, no parity, no flow control
RS‑232 connector typeRS‑232C

Frequently asked questions

What is the operating voltage range of the YM-1003?

The YM-1003 operates from 3.2 V up to 10 V.

How should the RS‑232 interface be configured?

Set the RS‑232 port to 9600 bps, 8 data bits, 1 stop bit, no parity, and no flow control.

Who manufactures the YM-1003 test kit?

The YM‑1003 is manufactured by Yokoyama Co., Ltd.

Where can I get support for the YM-1003?

Contact Yokoyama at Tel 0263‑40‑1830, email [email protected], or visit http://yokoyama-mfg.co.jp/.
