The LP2000 Receiver User Manual introduces the features and functions of the LP2000 receiver, including compliance with MPEG2 requirements, EPG, TeleText, etc.

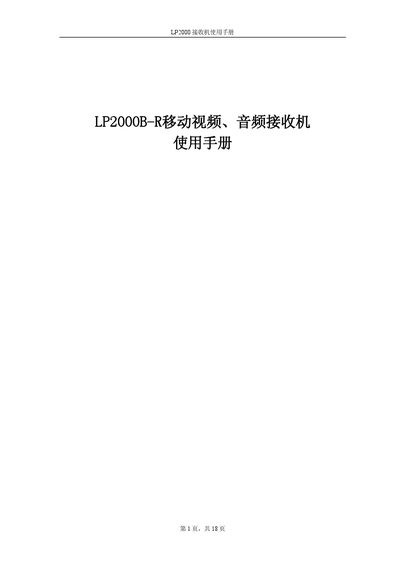

This manual describes the LP2000B-R mobile video and audio receiver. It lists product features such as MPEG‑2 compliance, automatic search, menu‑driven operation, channel list editing, signal strength display, power‑off memory, and feed‑power protection. The package includes the receiver, a remote control with battery, a remote cable, two NEF‑75JJ adapters, a power cable and the user guide.
The front panel shows the power switch, infrared remote interface, power indicator and feed‑power indicator. The rear panel provides RS‑232, DC12 V, video and audio outputs, antenna input, and power input. The manual explains how to navigate the main menu, set preferences, install the antenna and connect to a TV or speaker, and lists the technical specifications such as frequency range, bandwidth, input level, demodulation method, and CPU details. This manual is written in Chinese.
| Frequency Range | 170‑860 MHz (VHF and UHF) |
|---|---|
| Bandwidth | 6 or 7.8 MHz |
| Input Level | -90 dBm to -20 dBm |
| Input Impedance | 75 Ω |
| Demodulation | COFDM |
| Constellation | QPSK, 16 QAM, 64 QAM |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| FFT mode | 2K, 8K |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Video Decoding | MPEG‑2 (ISO/IEC 13818‑2) |
| Aspect Ratio | 4:3, 16:9 |
| Maximum Resolution | 720 × 576 |
| Teletext | DVB‑TXT (ETSI/VEN 300 472) |
| Audio Decoding | MPEG‑2 (ISO/IEC 13818‑3) |
| Audio Output Mode | Stereo |
| CPU | STi5518, 81 MHz |
| Flash Memory | 2 MBytes |
| SDRAM | 8 MBytes |
| Power Consumption (max) | 20 W |
| Dimensions (W×H×D) | 480 mm × 294 mm × 44 mm |
| Weight | 3.5 kg |
Connect the antenna cable to the RF input connector on the rear panel.
The receiver provides RCA video output connectors on the rear panel.
