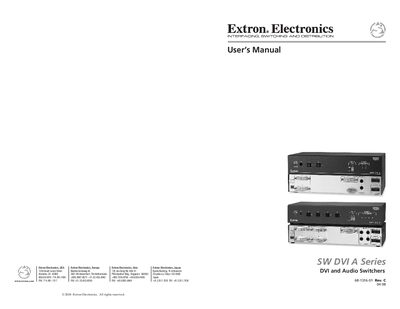

This is the user's manual of Extron DVI and Audio Switchers 68-1316-01 Rev. C 04 08 SW DVI A Series
The Extron SW DVI‑A Series includes two‑input (SW2) and four‑input (SW4) DVI‑audio switchers that route DVI‑D video up to 1920×1200 or 1080p @ 60 Hz and support balanced or unbalanced stereo audio. They feature autoswitching, independent input equalization, EDID Minder, and a compact 1U metal enclosure.
The manual covers mounting options (tabletop, rack, or furniture), wiring of power, video, audio, and RS‑232 connections, as well as control methods via the front panel, IR‑102 remote, or SIS commands over RS‑232. Safety precautions, warranty information, and FCC compliance details are also included.
| Inputs | 2 (SW2) or 4 (SW4) DVI‑D video inputs |
|---|---|
| Maximum video resolution | 1920×1200 or 1080p @ 60 Hz |
| Pixel bandwidth | 165 MHz |
| Audio support | Balanced and unbalanced stereo |
| Enclosure size | 1U high, 3.5 inches deep, VersaTools metal enclosure |
| Power supply | External 12 VDC, 100‑240 VAC input |
No, the SW DVI‑A Series switchers are not compatible with HDCP signals.
