PPC-121A is a 12.1-inch high-brightness TFT industrial panel computer with dustproof, salt-proof, shockproof design. It can be widely used in telecommunications, power, multimedia, national defense, industrial automation equipment, manufacturing and other fields as a man-machine interface, thin client, P L C and P O S communications, control terminal.
The PPC-121A is a high‑brightness 12.1" TFT panel computer designed for industrial, military, and POS applications. It offers a compact panel‑mount design with NEMA 4/12 and IP65 protection, making it suitable for harsh environments.

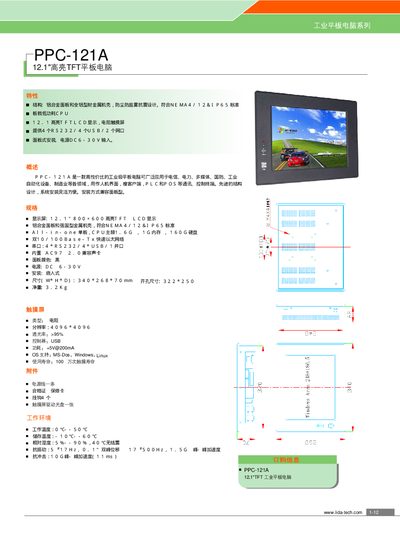

The manual details the hardware features, including a 1.6 GHz CPU, 1 GB RAM, 160 GB storage, multiple RS‑232 and USB ports, Ethernet, and AC97 audio, as well as power input, dimensions, and operating conditions. This manual is written in Chinese.
| Display | 12.1" TFT LCD, 800×600 |
|---|---|
| CPU Frequency | 1.6 GHz |
| Ethernet | 10/100 Base‑TX |
| Serial Ports | 4 × RS232 |
| Power Input | DC 6‑30 V |
| Power Consumption | +5 V @ 200 mA |
| Dimensions | 340 × 268 × 70 mm |
| Weight | 3.2 kg |
| Operating Temperature | 0 °C – 50 °C |
| Storage Temperature | -10 °C – 60 °C |
| Relative Humidity | 5 % – 90 % RH |
| Shock Resistance | 10 G |
