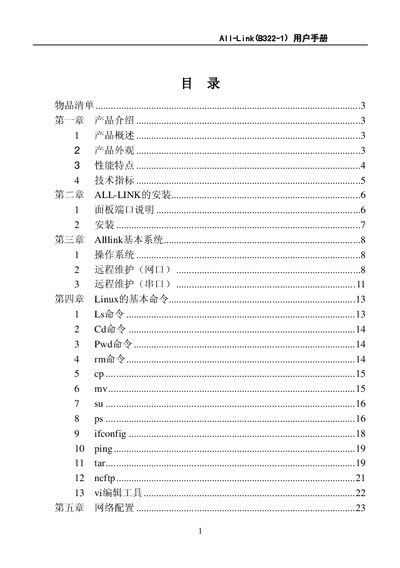

All-Link(B322-1) User Manual is the instruction manual of All-Link remote data terminal, which introduces the product features and characteristics, installation, basic system, Linux basic commands, network configuration, OPC collection program configuration, common diagnosis and other contents.
The All-Link B322-1 is a remote data terminal designed for industrial data acquisition and control. It runs an embedded Linux OS, offers two RS‑232C serial ports and two RJ45 Ethernet ports, and supports OPC, DDE and other communication protocols.
This manual provides product overview, hardware specifications, installation instructions, system configuration, remote maintenance via Ethernet or serial, and common diagnostic procedures. This manual is written in Chinese.
| CPU | AMD ElanCS520, compatible with Intel |
|---|---|
| Main Frequency | 400 MHz |
| Address Space | Maximum 1 GB |
| Internal Bus | 32‑bit, 66 MHz |
| Cache | 16 KB |
| DRAM | 256 MB DDR |
| DOC (Flash) | 32‑256 MB |
| Bus Types | ISA‑16‑bit, PCI‑32‑bit |
| BIOS | Award BIOS |
| IDE Interface | PC/AT compatible |
| Serial Ports | COM1 (RS232/RS485 selectable), COM2 (RS232) |
| Ethernet Interface | Realtek RTL8139C, 10/100 M |
| Power Supply | 220 V / 55 Hz |
