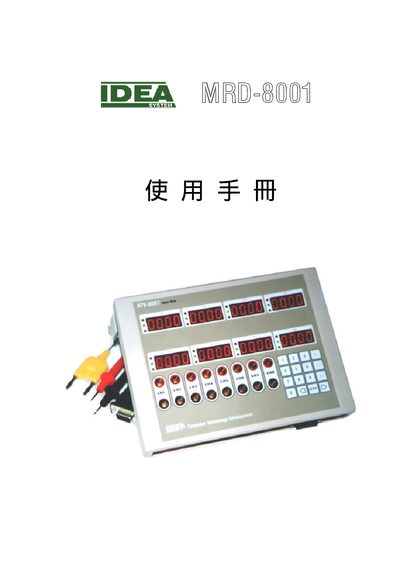

MRD-8001 is a multi-channel data acquisition instrument with high accuracy and stability. It can communicate with computers via the RS-232 interface and has multiple input and output ports, making it suitable for various applications.
The MRD-8001 is an 8‑channel data acquisition device with a 10 000‑count display, K‑type thermocouple inputs and a wide measurement range. It operates from 0 °C to 50 °C ambient temperature and supports RS‑232 communication for PC interfacing.
The manual includes detailed specifications, wiring diagrams, setup procedures, and a list of standard accessories such as the power adapter, 8‑channel input box, and PC software. Contact information for Idea Chun Der Co.,Ltd is provided for further support.
| Display | 10000 Count |
|---|---|
| Input channels | 8CH |
| Input voltage range | 0‑100V DC p‑p |
| Thermometer range | -50 °C ~ 1000 °C |
| Sensor type | K Type |
| Isolation voltage | 1500 VDC (between channels) |
| Computer interface | RS‑232 |
| Power supply | 90VAC ~ 270VAC 50/60 Hz |
| Dimensions | 190 mm W × 140 mm H × 44 mm D |
The MRD-8001 provides eight input channels.
It accepts an input voltage range of 0 to 100 V DC peak‑to‑peak.
The device uses an RS‑232 interface for PC communication.
