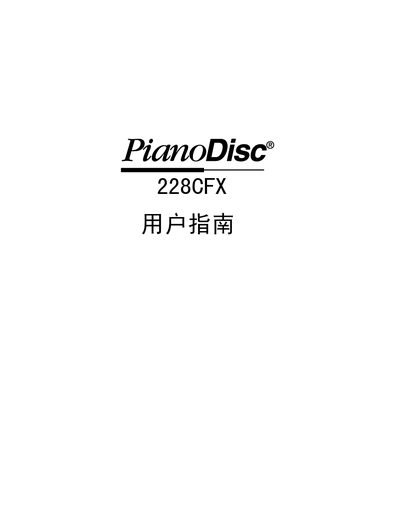

PianoDisc PDS-228CFX User Manual

About this manual

This manual describes the front‑panel controls of the PDS‑228CFX, including volume up/down, play/stop, scan forward/backward, and mode selection for CD, MX and accompaniment functions. It also explains the LCD display, contrast adjustment, and indicator LEDs that show playback status and MX mode.

The rear panel section lists all connectors: MIDI IN/OUT/THRU (5‑pin DIN), TO PIANO DIN, RS‑232, audio input/output, CD IN, and power input (9 V DC). Side‑panel details cover the stereo headphone jack and how inserting headphones mutes the main output. The index at the end provides quick reference to functions such as volume control, mode switching, and troubleshooting. This manual is written in Japanese.

What's inside

• Front Panel Controls
• Rear Panel Connectors
• Side Panel Headphone Jack
• MIDI Interface
• Audio Input/Output
• Display and Contrast
• Operation Modes (CD, MX, Accompaniment)
• Volume Control
• Index
