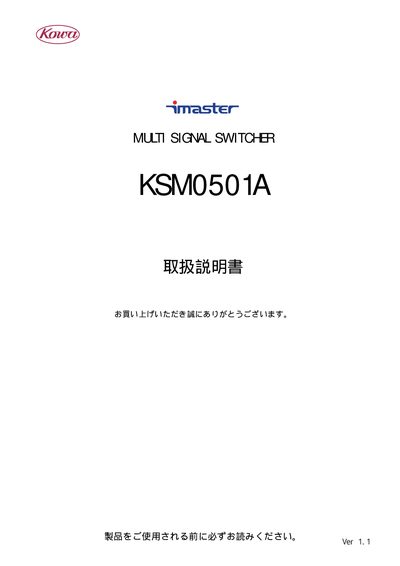

This document introduces the use of KSM0501A multi-signal switch, precautions, etc.
This manual begins with safety precautions, warning symbols, and instructions on how to avoid fire, electric shock, and injury when handling the KSM0501A. It explains proper installation locations, power‑plug handling, and the importance of not modifying the device.
The later sections describe the product overview, front and rear panel functions, initial factory settings, serial, parallel and LAN control interfaces, as well as detailed specifications such as input channels, default IP address, and power requirements. Troubleshooting guidance is also included. This manual is written in Japanese.
| Model | KSM0501A |
|---|---|
| Video Input Channels | RGB: 3CH, NISC: 2CH |
| Audio Input Channels | 5CH |
| Power Supply | AC 100 V ±10 % 50/60 Hz |
| Power Consumption | ≈30 W |
| Dimensions (W×D×H) | 22 mm × 200 mm × 140 mm (1U) |
| Weight | ≈4 kg |
| Default IP Address | 192.168.0.100 |
| Operating Temperature | 0 °C – 40 °C |
The default IP address is 192.168.0.100.
The device is rated for operation between 0 °C and 40 °C.
