SJK ZTB456/503/500F Ceramic Resonator Datasheet

This document introduces the product characteristics of ZTB456/503/500F series ceramic resonators, including models, frequency accuracy, and the used ICs.

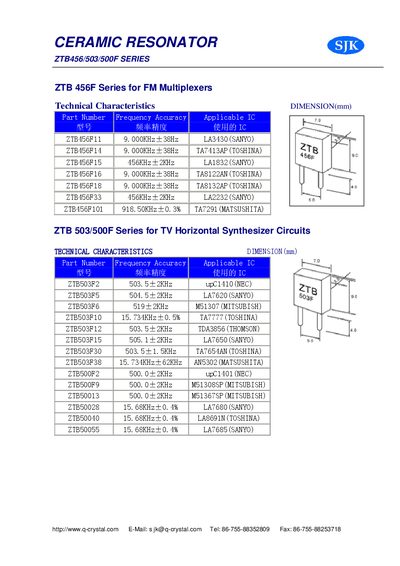

SJK ZTB456/503/500F Ceramic Resonator Datasheet - cover page
Brand
SJK
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
1
File format
PDF
File size
147 KB
Published
11 December, 2011
Updated
30 September, 2023
MD5 checksum
CC4D182348B62159CFDCF9E30972F0B9
PDF
SJK ZTB456/503/500F Ceramic Resonator Datasheet PDF

About this manual

The ZTB456/503/500F series ceramic resonators from SJK are designed for FM multiplexers and TV horizontal synthesizer circuits. The series includes the ZTB456F, ZTB503F and ZTB500F families, each offering precise frequency values for a range of applications.

The document lists technical characteristics such as part numbers, frequency accuracy, dimensions and the compatible integrated circuits. Frequencies range from about 9 kHz to 518 kHz with specified tolerances, and each part is matched to specific ICs from manufacturers like SANYO, TOSHINA, NEC, MITSUBISHI and MATSUSHITA.

What's inside

  • Technical Characteristics
  • Part Numbers
  • Frequency Accuracy
  • Dimensions
  • Applicable Integrated Circuits

Specifications

ZTB456F11 Frequency9.000 kHz ±38 Hz
ZTB456F14 Frequency9.000 kHz ±38 Hz
ZTB456F101 Frequency918.50 kHz ±0.3 %
ZTB503F2 Frequency503.5 kHz ±2 kHz
ZTB500F2 Frequency500.0 kHz ±2 kHz

Frequently asked questions

What is the frequency of the ZTB456F11 resonator?

The ZTB456F11 resonator operates at 9.000 kHz with a tolerance of ±38 Hz.

Which integrated circuits are compatible with the ZTB503 series?

Compatible ICs include UC1410 (NEC), LA7620 (SANYO), M51307 (MITSUBISHI), and TA7777 (TOSHINA).
