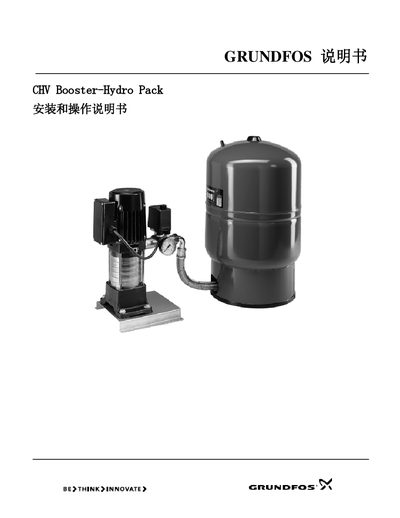

This document is the installation and operation manual for the CHV Booster-Hydro Pack booster system by GRUNDFOS. The system is designed for conveying and pressurizing clean water in various locations, and it features functions such as pressure switch control and automatic pump operation.
This manual provides step‑by‑step instructions for installing the CHV Booster‑Hydro Pack, including site preparation, electrical connections, and mechanical mounting. Safety warnings, compliance references (EN standards), and contact information for Grundfos service centers are included.
Operational guidance covers start‑up procedures, performance settings, and routine maintenance. Technical specifications such as temperature limits, pressure rating, voltage options, and IP protection are listed for proper system configuration.
| Operating temperature | 0 °C to +40 °C |
|---|---|
| Maximum pressure | 10 bar |
| IP protection rating | IP54 |
| Voltage | 220‑240 V or 380‑415 V |
| Frequency | 50 Hz |
The unit can operate from 0 °C up to +40 °C.
It is rated for a maximum pressure of 10 bar.
The equipment is protected to IP54.
The pack can be supplied with either 220‑240 V or 380‑415 V.
