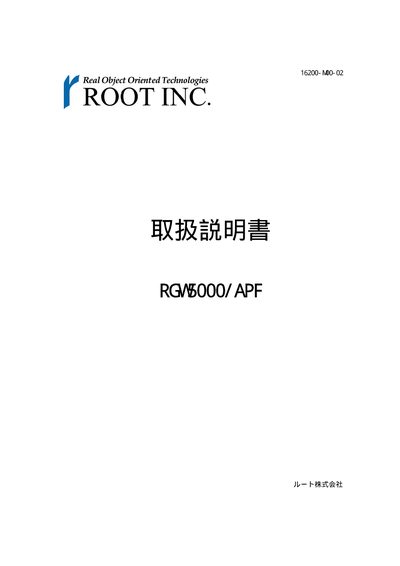

This document is the instruction manual for RGW5000/APF. It mainly introduces the precautions and prohibitions of the product.
This manual begins with safety precautions, warning users about risks of heat, high‑altitude work, improper cable handling, and exposure to water or fire. It stresses the importance of following the installation manual and using only the specified power source.
The later sections cover installation procedures, grounding, waterproof cable clamp specifications, main technical specifications, user registration via the company website, and contact details for support. This manual is written in Japanese.
| Input Voltage | AC100V |
|---|---|
| Power Consumption | 16W‑32W |
| Dimensions (W×H×D) | 310.4 mm × 200 mm × 139 mm |
| Display Functions | CT1, OPT2, Wireless LINK, ETHER |
| Ethernet Standard | IEEE 802.3, 100BASE‑FX |
| Fiber Type | Single‑mode 10/125 µm |
| Fiber Connector | SC type |
| Wireless Standards | IEEE 802.11g, IEEE 802.11b, ARIB STDT66 |
| Transmission Power | ≤10 nW |
| Frequency Channels | 2412‑2472 MHz (13 channels) |
| Data Rates | 6‑54 Mbps (802.11g) / 1‑11 Mbps (802.11b) |
Stop using the device immediately; continued use could cause fire or electric shock.
Register on the company’s website using the provided URL in the manual.
The device operates on AC 100 V and consumes between 16 W and 32 W.
It supports IEEE 802.11g, IEEE 802.11b, and ARIB STDT66.
