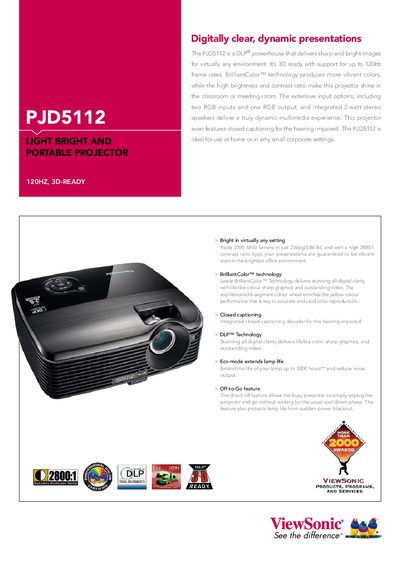

The ViewSonic PJD5112 is a lightweight, 2.66 kg DLP projector offering 2700 ANSI lumens brightness, 2800:1 contrast ratio, and 3D‑ready performance up to 120 Hz. It features BrilliantColor™ technology, integrated closed‑captioning, and a range of input options including dual RGB, composite, and S‑Video.
This manual covers the projector’s specifications, installation steps, control functions, optional accessories, and environmental operating limits. It also lists the contents of the package and provides wiring diagrams and connection details for power, video, audio, and data interfaces.
| Brightness | 2700 Lumens |
|---|---|
| Contrast Ratio | 2800:1 |
| Lamp Power | 180 W |
| Lamp Life (Eco Mode) | 5000 hours |
| Resolution | SVGA 800×600 (native) / UXGA 1600×1200 (compressed) |
| Throw Ratio | 161.9 |
| Dimensions (W×H×D) | 280 mm × 114 mm × 218 mm |
| Weight | 2.66 kg |
| Power Consumption (Typical) | 235 W |
The lamp can last up to 5,000 hours in Eco mode.
Yes, it includes an integrated closed‑captioning decoder for the hearing impaired.
The projector provides two RGB mini‑D‑sub inputs, one RGB output, a composite RCA input, an S‑Video mini‑DIN, a 3.5 mm audio input, and a 3.5 mm audio output.
