GQ2008 optical terminal is a high-integrated voice and data integrated access device with bandwidth automatic dynamic allocation function. It can be widely used in telecom, mobile, netcom, unicom operators as well as electric power, water conservancy, finance, transportation, coal, public security, prison, army and other departments of voice, data, image integrated access.
The GQ2008 optical transceiver is a high‑integration voice and data access device that supports Ethernet, FE1 and other signals over a single fiber channel. It is designed for telecom operators, utilities, transportation, and other sectors requiring reliable voice, data and video transmission.

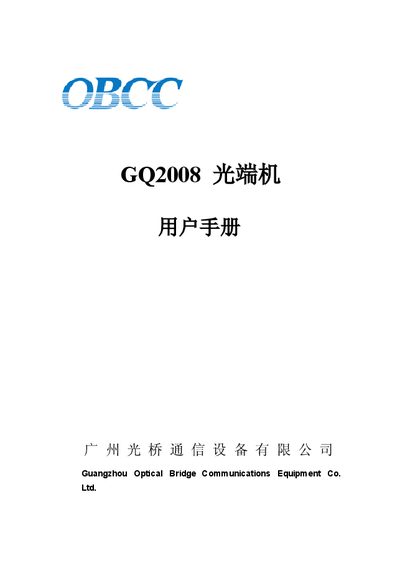

The manual covers mechanical parameters, interface standards (optical, Ethernet, RS‑232, FXO/FXS), power requirements, wiring methods, and a detailed fault‑diagnosis table to help users install, configure, and maintain the equipment safely. This manual is written in Chinese.
| Operating Temperature | 0°C – 170°C |
|---|---|
| Storage Temperature | -40°C – +70°C |
| Relative Humidity | 10% – 95% |
| Input Voltage | AC 220V / DC 48V |
| Dimensions (W×H×D) | 430(483) mm × 44.5 mm × 203 mm |
Use the RJ45 connector on the front panel and follow the pinout table: pin 1 TXD1, pin 2 CTS/CSR/DCD, pin 3 RXD1, pin 4 GND, etc.
The Ethernet ports support 10 Mbps and 100 Mbps, full/half‑duplex auto‑negotiation.
The AC input may vary between 165 V and 265 V.
