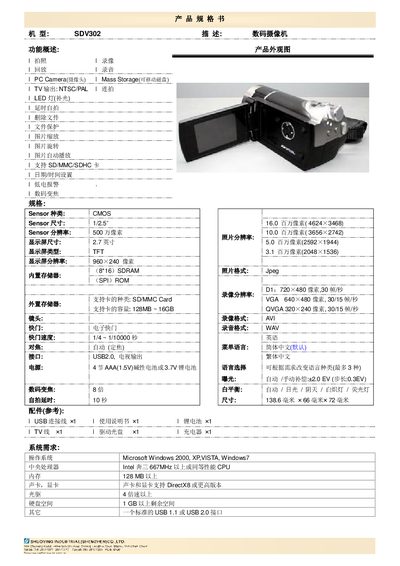

This document describes the features and specifications of the SDV302 digital camcorder. The camcorder has functions such as photo shooting, video recording, playback, audio recording, PC Camera, Mass Storage, etc. It supports NTSC/PAL TV output and SD/MMC/SDHC cards. It uses a CMOS sensor with a photo resolution of 16.0 megapixels and a video resolution of 5.0 megapixels. The camcorder also supports digital zoom, date/time setting, low battery alarm, etc. It is powered by 4 AAA alkaline batteries or a 3.7V lithium battery, with a battery life of approximately 3 hours. The dimensions of the camcorder are 138.6mm × 66mm × 72mm.
The SDV302 is a compact digital video camera that can capture photos and record video. It offers functions such as photo shooting, video recording, playback, audio recording, LED fill‑light, timer selfie, file protection, and image rotation. The device connects via USB 2.0 and provides TV output for NTSC/PAL signals.
Technical specifications include a CMOS sensor (1/2.5" size, up to 10 MP), a TFT LCD screen, support for SD/ MMC/ SDHC cards (128 MB‑16 GB), internal storage, VGA video recording at 30 fps, and power supplied by four AAA alkaline batteries or a 3.7 V lithium battery. Dimensions are 138.6 mm × 66 mm × 72 mm, and the camera comes with accessories such as a USB cable, TV cable, charger, and user manual. This manual is written in Chinese.
| Sensor type | CMOS |
|---|---|
| Sensor size | 1/2.5" (16.0 MP) |
| LCD display type | TFT |
| Supported memory cards | SD/ MMC/ SDHC (128 MB‑16 GB) |
| Battery | 4×AAA alkaline or 3.7 V Li‑ion |
It uses a CMOS sensor.
The camera supports SD, MMC, and SDHC cards ranging from 128 MB to 16 GB.
