ZX-TY056I32S-0808 is an industrial-grade 5.6-inch high-performance TFT digital LCD product. The product has an integrated structure, is easy to use, stable and reliable, and is continuously supplied. It is the ideal choice for industrial control, instrumentation, and instrument industries.
The ZX‑TYO56I32S‑0808 is a 5.6‑inch high‑performance TFT LCD controller designed for industrial control, instrumentation and display applications. It offers 8‑bit 8080 interface, SPI touch controller compatibility, and a high‑lifetime LED backlight.

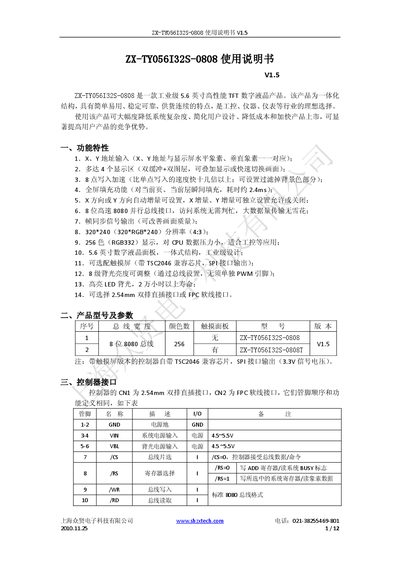

The manual describes functional features, pin assignments, operation timing, register maps, auto‑increment modes, display modes, mechanical dimensions and electrical parameters, providing all information needed for integration and programming. This manual is written in Chinese.
| Supply voltage (VIN) | 4.5 V – 5.5 V |
|---|---|
| Backlight voltage (VBL) | 4.5 V – 5.5 V |
| Input low voltage (VIL) | -0.3 V – 1 V |
| Input high voltage (VIH) | 2.3 V – 3.6 V |
| Resolution | 320 × 240 RGB332 |
| Number of colors | 256 (RGB332) |
| Contrast | 400 – 500 |
| Brightness | 250 cd/m² |
| Operating temperature | -20 °C – 70 °C |
| Storage temperature | -39 °C – 80 °C |
| LED lifetime | 20 000 hours |
The controller operates with a supply voltage (VIN) between 4.5 V and 5.5 V.
It supports 256 colors using the RGB332 format.
The panel resolution is 320 × 240 pixels with a 4:3 aspect ratio.
The device can operate from –20 °C up to 70 °C.
